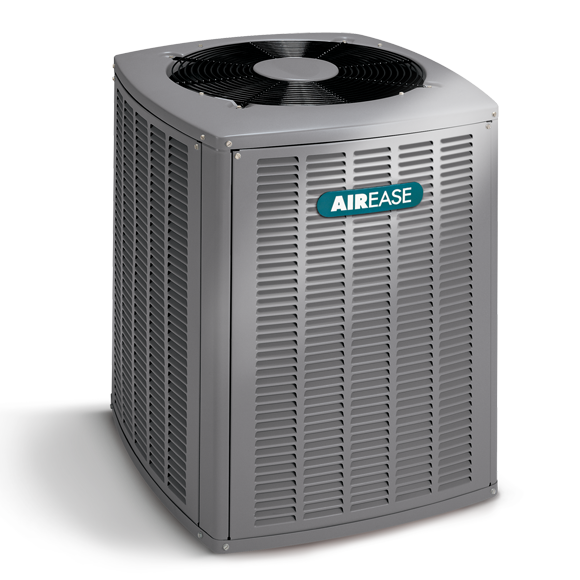

4SCU13LE Single Stage Split AC Units
Inside the 4SCU13LE you’ll find a unique blend of advanced technology that delivers consistent efficiency and performance through even the hottest summers. The 4SCU13LE is designed by comfort experts' and built by people who take genuine pride in their work.
- MHT Technology AirEase’s proprietary heat transfer system. A specially designed fan shroud pulls air evenly throughout the air conditioner’s coil surface. The coil features rifled tubing to enhance refrigerant flow' while lanced coil fins increase surface contact between metal and air. All combine for maximum heat transfer and efficiency.
- Sound Reduction Inside every 4SCU13LE' you’ll find a compressor that’s wrapped in a heavy-duty' sound-insulating blanket to reduce operating noise. So you’ll enjoy peace and quiet with your comfort.
- Integrated Compressor Protection High- and low-pressure switches give additional reliability to each AirEase cooling unit.
- Single-Stage Scroll Compressor A time-proven design chosen for its consistent performance' incredible durability and long operating life' the single-stage scroll compressor works hard year after year.
- Microban® Protection On Matched AirEase Indoor Coil. Drain pans are infused with an antimicrobial agent that destabilizes the membrane of microorganism cells' disrupting the cellular function of odor-causing mold and bacteria so they can no longer grow or reproduce.
MODEL | Cooling Cap. MBtuH | SEER | Refrigerant Charge Oz. | Line Size | Dimensions HxWxD | Weight Lbs. |
---|
4SCU13LE142P-S | 40.0 | 13.0 | 104 | 3/8-3/4 | 29.4x31.25x29.75 | 201 |
4SCU13LE124P-5 | 22.8 | 13.0 | 70 | 3/8-5/8 | 24.75x26.75x25.75 | 137 |
4SCU13LE130P-5 | 28.0 | 13.0 | 82 | 3/8-3/4 | 24.75x26.75x25.75 | 149 |
4SCU13LE118P-5 | 17.6 | 13.0 | 62 | 3/8-5/8 | 24.75x26.75x25.75 | 140 |
4SCU13LE136P-5 | 34.0 | 13.0 | 84 | 3/8-3/4 | 24.75x26.75x29.75 | 157 |
4SCU13LE148P-5 | 47.0 | 13.0 | 124 | 3/8-7/8 | 29.4x31.25x33.75 | 204 |
4SCU13LE160P-5 | 57.0 | 13.0 | 144 | 3/8-7/8 | 29.4x31.25x29.75 | 231 |
Warranty Information
- All Parts
for 120 months - With prompt online registration
- Compressor for 120 months -
